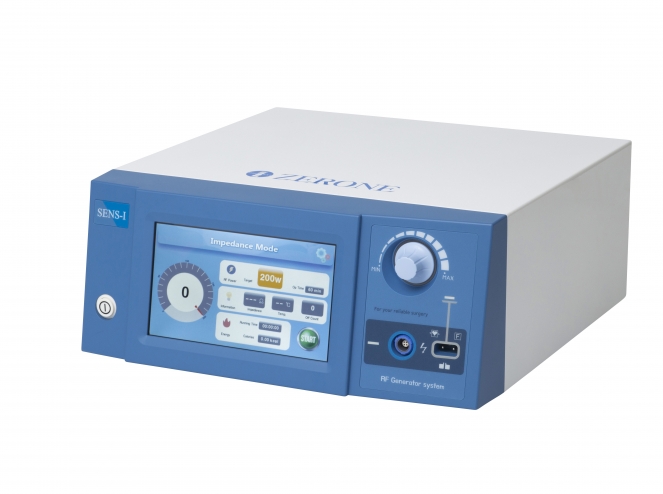

RF Generator
***** CE MDR on progressOutput Specification
Mode
Impedance Mode
Temperature Mode
Auto Mode
Frequency
400kHz
Crest Factor
1.4
Max Output Voltage
50Ω / 270Vpp
Max Output Power
50Ω / 200W
Temperature Range
5~99℃ (±5℃)
Impedance Range
10~800Ω / 10~50Ω (±10Ω), 51~800 (±20%)
Op Time Range
5~60min
Power Source : AC 100-240V, 50/60Hz
Power Consumption : 550VA
Protection Class : Class1, Type CF
Demension (W x D x H) : 389mm x 395mm x 158mm
Weight : 10Kg
Features
- Excellent performance with lower power with Technology of Tissue Impedance
- Patient plate monitoring system
- 8 inch colorful touch screen
- Simple and intuitive user interface

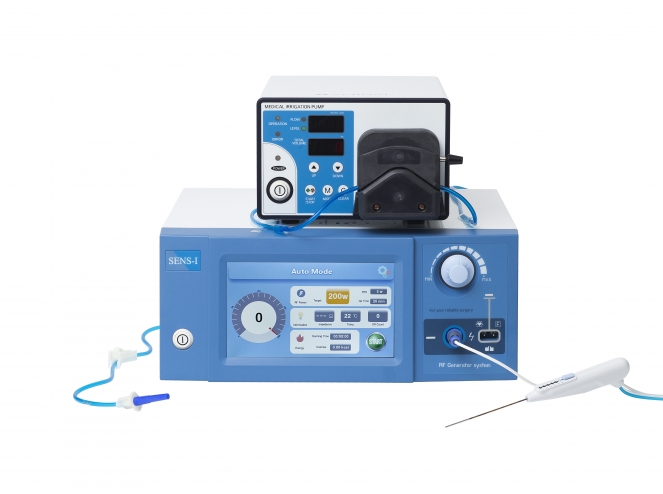

- Compatible with various electrode types
- Dual controlling system, by LCD touch screen & foot switch
- Advanced self-test function upon startup
- Various treatment algorithms in memory
- Suitable for single electrode ablation
- Available free voltage
- Internally cooling system
- Easy PC monitoring by USB drive
- SF15G1835-40 : Disposable SENS Probe ( Fixed 1.8 x 350 x 40mm )
- SF15G1807-05 : Disposable SENS Probe ( Fixed 1.8 x 70 x 5mm )
- SS17G1535-1540 : Disposable SENS Probe ( Step 1.5 x 350 x 15-40mm )
- SS17G1510-0530 : Disposable SENS Probe ( Step 1.5 x 100 x 5-30mm )
